FlyMaple: Low Level Control and Data Acquisition

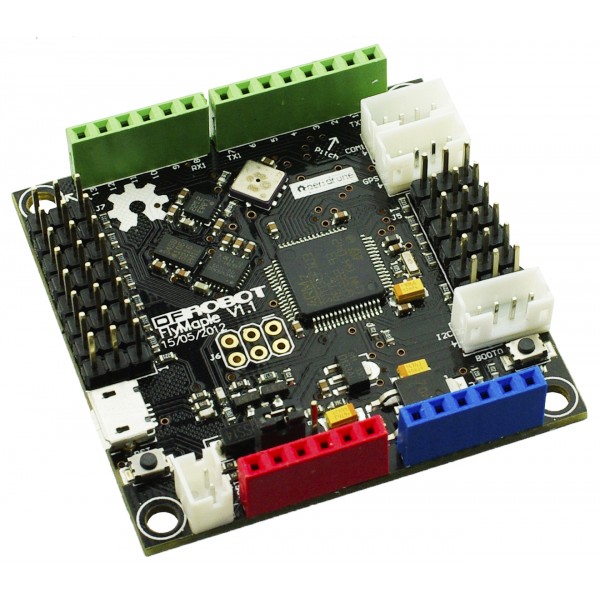

IGP3165-600x6001Flymaple is a controller board, based on the Maple Project.

The FlyMaple embeds a M32F103RET6 (ARM Cortex-M3) as it’s main MCU. It integrates a 3-Axis accelerometer,a 3-Axis gyroscope,a 3-Axis compass and a barometric pressure sensor. By using the 10 dgrees of freedom IMUs and powerful 72MHz high-performation microcontroller, flymaple is powerful enough to handle a complex algorithm and manage a robot motion system at the same time.

The pinout shows that we can use 8 radio channels inputs (J7) and we can provide up to 8 pwm signal (J5/J3). The board admits from 7V to 12V through the connector J9.


  • Working Voltage: 5v
  • STM32 Operating Voltage: 3.3v
  • 7~12v External Power supply from the 2p JST connector
  • Output Voltage: 3.3v/5v or External input power
  • Microcontroller: STM32F103
  • Running at 72Mhz with 32bit Arduino sytle ARM processor(Cortex-M3)
  • Bootloader: Leaflabs Maple RET6 Edition
  • 10 Degrees of Freedom on a single, flat board:
    • ITG-3200 – triple-axis digital-output gyroscope
    • ADXL345 – 13-bit resolution, ±16g, triple-axis accelerometer
    • HMC5883L – triple-axis, digital magnetometer
    • BMP085 – high-precision barometric pressure sensor
  • Programable through an Arduino-based development environment – Maple IDE
  • Compatible with most of Arduino shields
  • Extends 6 channels PWM pins for controlling ESC/Servo
  • Extends 8 channels GPIO for capturing RC receiver output
  • 3x 4p JST connectors:
    • Serial port 1
    • GPS extension port
    • I2C interface
  • Size: 50x50x12mm
  • Weight: 15g
  • Envionment Friendly: Rohs Compliance
